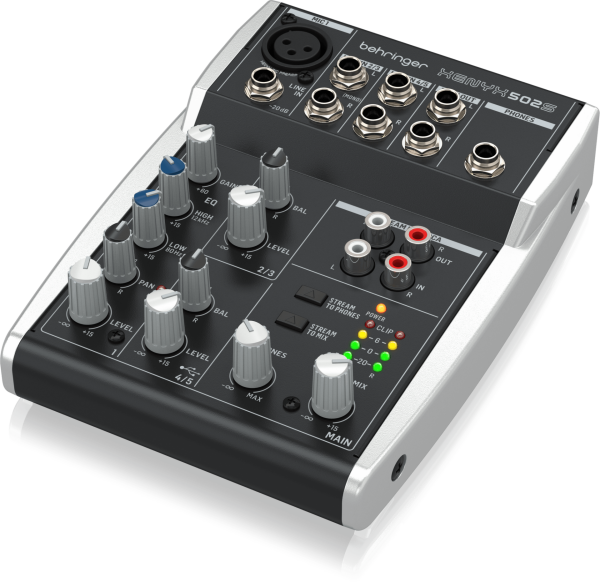

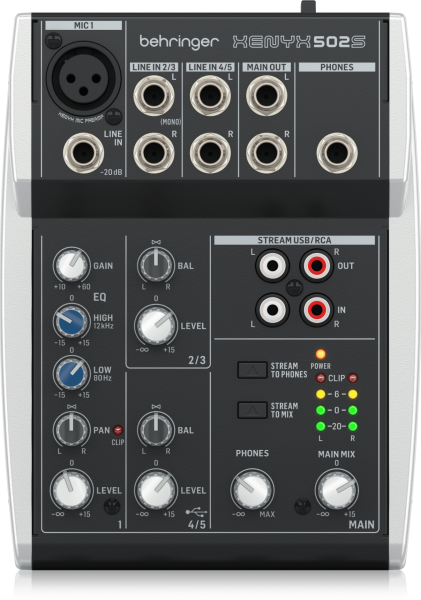

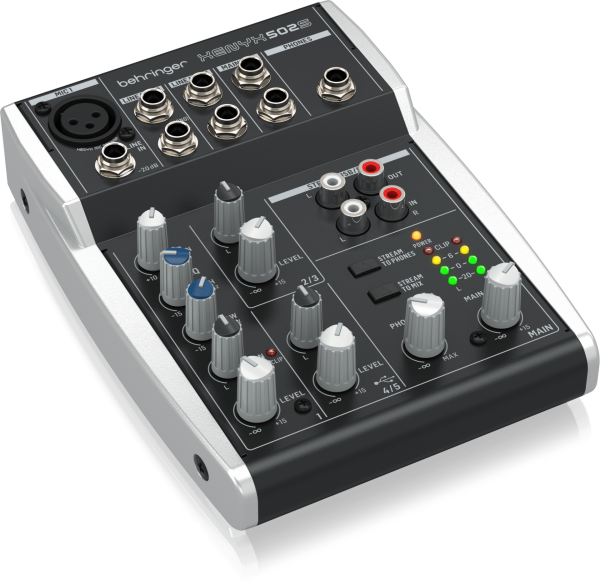

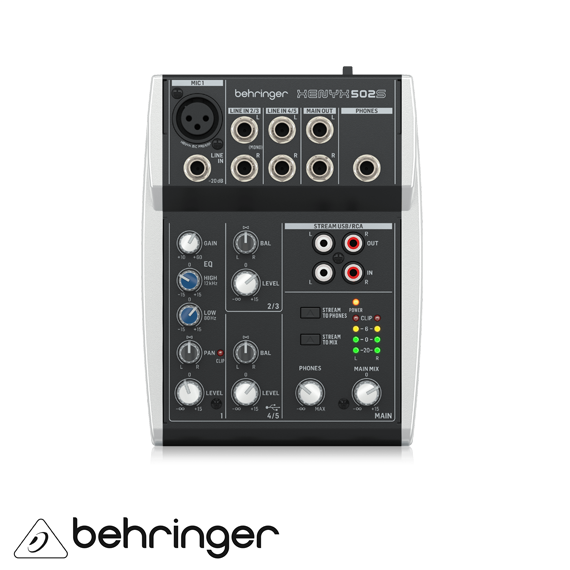

XENYX 502S 5 Kanal Anolog Mixer
Specification
Mono Inputs
| Microphone Input |
Balanced XLR, discrete input circuit Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB, A-weighted Frequency response Gain +10 dB: 10 Hz to 150 kHz Frequency response Gain +60 dB: 20 Hz to 70 kHz Gain range: +10 dB to +60 dB Max input level @ +10 dB Gain: +12 dBu Input Impedance: 2 kΩ balanced Distortion (THD + N) 1 kHz @ +10 dB Gain: 0.005%
|
| Mono Line Inputs |
1/4" TRS connector balanced Impedance: 22 kΩ balanced, 10 kΩ unbalanced Gain range: -10 dB to +40 dB Max input level @ 0 dB Gain: +21 dBu |
Stereo Inputs
| Stereo Line |
1/4" TRS connector balanced Frequency response: 20 Hz to 200 kHz Impedance: 22 kΩ balanced, 10 kΩ unbalanced Max input level @ 0 dB Gain: +21 dBu |
| STREAM Inputs (Analog) |
RCA connector unbalanced Impedance: 10 kΩ unbalanced Max input level: 10 dBu |
EQUALIZER
| Low |
80 Hz/±15 dB |
| High |
12 kHz/±15 dB |
Main, Monitor & FX Send Outputs
| Type |
1/4" TRS connector impedance-balanced |
| Impedance |
120 Ω |
| Max output level |
21 dBu |
Phones Out
| Type |
1/4" TRS connector unbalanced |
| Impedance |
23 Ω |
| Max output leve |
19 dBu/150 Ω |
STREAM out (Analog)
| Type |
RCA connector unbalanced |
| Impedance |
1 kΩ unbalanced |
| Max output level |
10 dBu |
Main Mix noise
| Main Mix @ -∞ |
-109 dBu A-weighted |
| Channel @ -∞ |
-109 dBu A-weighted |
USB
| Type |
Type-B connector |
| USB Audio Data |
48 kHz 16 bit |
| UAC2 Class Compliant |
stereo in/out |
Power Supply
| Power Consumption |
8 W |
| Adaptor input |
100 - 240 V~, 50/60 Hz, 0.5 A |
| Adaptor output |
18 V DC 1.0 A |
