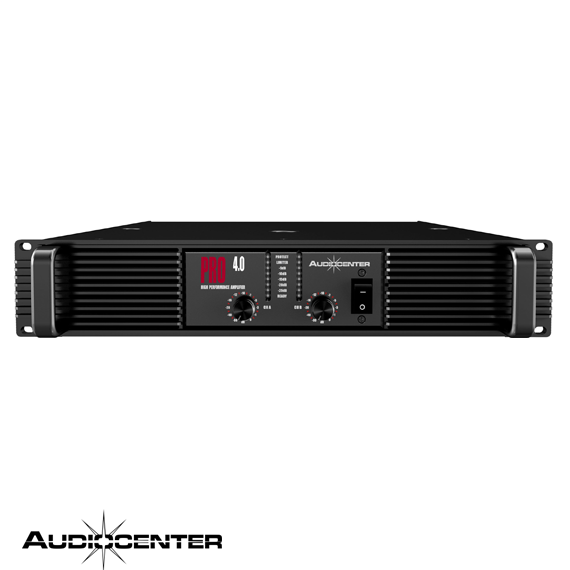

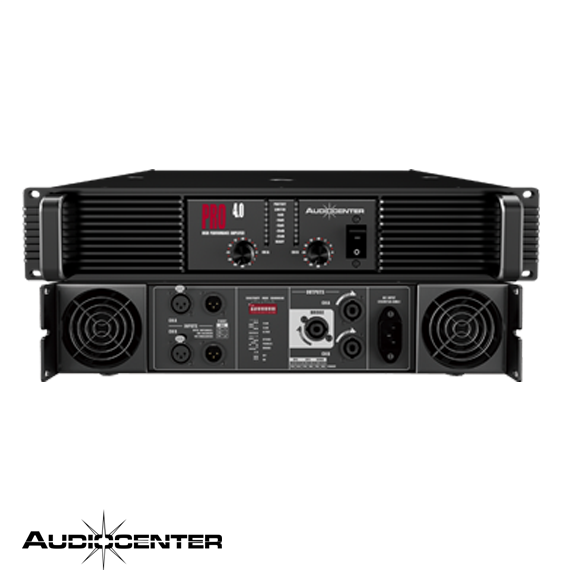

Pro 4.0 2x600 Watt Power Amfi
Specifications
|
Rated Power(20Hz-20kHz, <0.1%THD) |
2×400W@8Ω stereo 2×600W@4Ω stereo 2×800W@2Ω stereo 1200W@8Ω bridge 1600W@4Ω bridge |
|
A-Guard Protection System |
DC protection / Short circuit protection / Smart overheat management / Overheat protection / Input overload protection / Output overload protection / Soft startup protection / Limiter protection Up to 9V |
|
Frequency Response(1W 8Ω stereo) |
20Hz-20kHz(±0.5dB) |
|
Sensitivity |
0.775V / 32dB / 26dB |
|
Input Connectors Output Connectors |
Male XLR & female XLR 3× Speaker connector |
|
Filter Capacitor Capacity |
10000μf / 50V×8 |
|
Input Impedance |
Balanced 20kΩ / Unbalanced 10kΩ |
|
Crosstalk(20Hz-20KHz, Rated power 8Ω) |
≥65dB |
|
S/N Ratio(Rated power 8Ω, A weighted) |
≥108dB |
|
Damping Factor (1kHz&8Ω) |
≥500 |
|
Intermodulation Distortion(20Hz-20kHz, half power) |
≤0.05% |
|
Total Harmonic Distortion(20Hz-20kHz, rated power 8Ω) |
≤0.05% |
|
Phase Response(1W&8Ω, 20Hz-20kHz) |
20Hz+4° 20kHz-12° |
|
Slew Rate |
≥45V/μs |
|
Output Circuitry |
Class H+ |
|
Power Consumption(Dual channel driven 4Ω,1/ 8RMS / 230V) |
1.8A |
|
Rack Space |
2U |
|
Cooling |
Back to front venting, mandatory cooling |
|
Dimension (W×H×D) |
483×88×456mm |
|
Net Weight |
18.0Kg |
