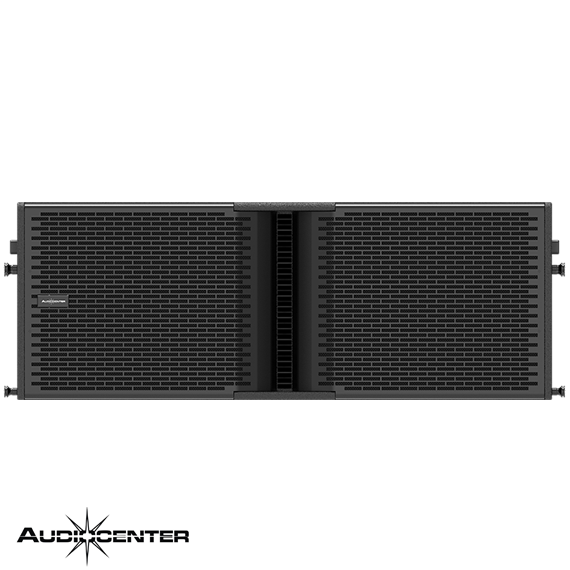

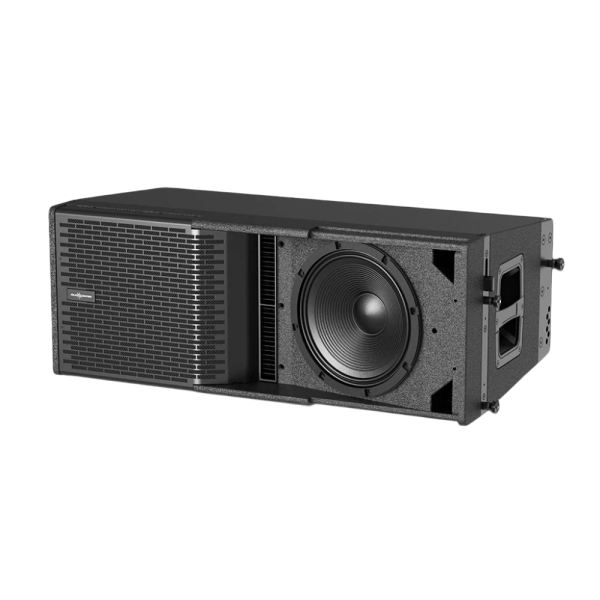

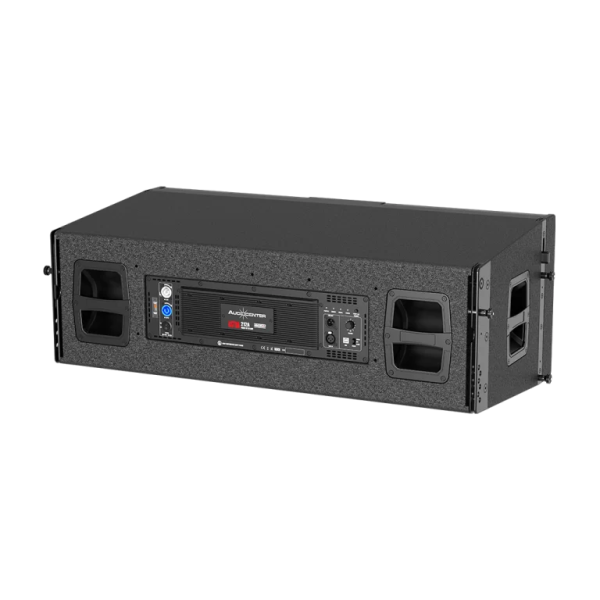

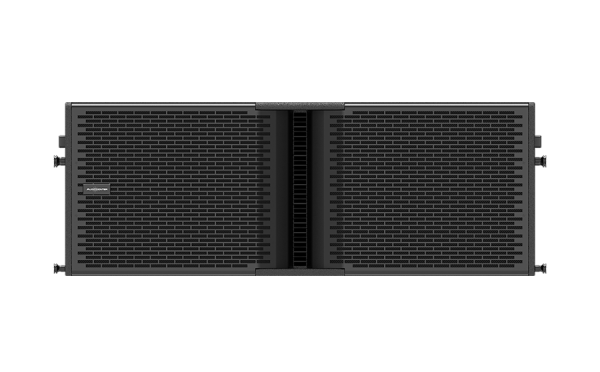

ASTRA 212A 1x12'' 3200 Watt Aktif Hoparlör
Specifications
|
Type |
Dual 10” two-way active DSP controlled line array loudspeaker |
|
Frequency Response(-10dB) |
40Hz-20kHz |
|
Horizontal Coverage |
90° |
|
Vertical Coverage |
Splay angle dependent |
|
Maximum Calculated SPL/1M (Continuous/Peak) |
126dB/132dB |
|
HF |
Customized driver, 2×1.75” voice coil,1.0” exit |
|
LF |
Customized 2×10” driver, 2.5”voice coil |
|
DSP |
|
|
Processor |
96kHz signal sampling frequency, FIR filtering |
|
Presets |
LINEAR,2 Units,W/SUB |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power(RMS standards) |
1600W |
|
Peak Power |
3200W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-20kHz(±0.5dB) |
|
Intermodulation Distortion (20Hz-20kHz, half power) |
＜0.05% |
|
Total Harmonic Distortion (20Hz-20kHz，Rated power 8Ω) |
＜0.05% |
|
Cooling System |
Cooling with fans |
|
Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
|
Signal Input Connectors |
Female XLR |
|
Signal Output Connectors |
Male XLR |
|
Power Input Connectors |
Power connector |
|
Power Output Connectors |
Power connector |
|
AC Power Operating Range |
100V-130V~ or 220V-240V~(±10%,50/60Hz) |
|
Power consumption(1/8 output power) |
117W |
|
CABINET |
|
|
Cabinet Material |
CNC made of excellent wood |
|
Angle Adjustment |
0°,2°,4°,6°,8°,10° |
|
Coating |
Durable Polyurea Coating |
|
Cabinet Color |
Black is the default color. Contact Audiocenter for customization |
|
Grille |
Iron mesh |
|
Handles |
2 side,2 rear |
|
Optional Accessories |
Frame for flying and ground stacking / Flightcase with 100mm wheels / Rain bag / Dolly |
|
Speaker Dimension(W×H×D) |
760×295×412mm |
|
Carton Dimensions (W×H×D) |
899×374×595mm |
|
Net Weight |
30.0kg |
|
Shipping Weight |
34.0kg |
